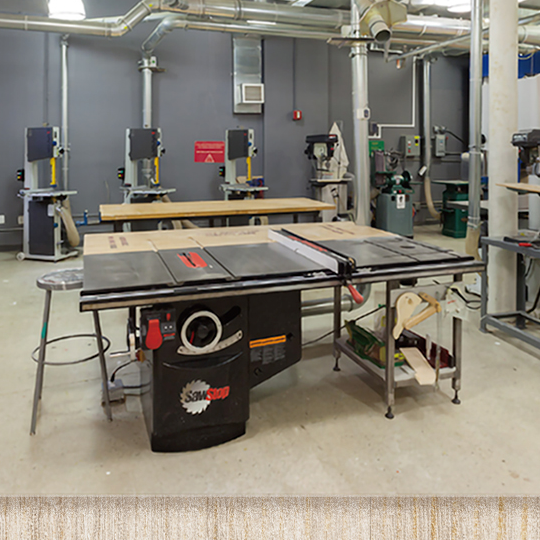

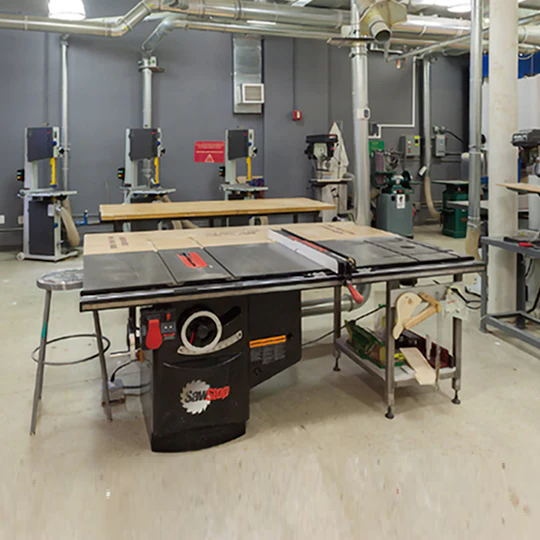

Industrial Cabinet Saw 台鋸

Industrial Cabinet Saw 台鋸

Regular price HK$72,000.00
Regular price Sale price HK$72,000.00
Sale Sold out

Shipping 送貨服務:

Delivery time: 2-3 weeks

Standard shipping rate: HKD3,000.00
標準運費為 HKD3,000.00

Important notice:  If the delivery address is not on ground floor and there is not accessible by lift, we will additionally charge you a special delivery fee. Please contact our CS at the time of ordering for details of the large product delivery and additional charges.

重要事項:  如送貨地址位於地面以上/下樓層而該樓宇沒有升降機設施可使用,我們將額外收取特別運送服務費。 請在訂購商品的同時;聯絡我們客戶服務以了解大型商品運送和附加費用的詳細資訊。



36" Rip Capacity: ICS31230: 36" T-Glide Fence Assembly
Motor Option(s) (60Hz TEFC): 3, 5HP available
Overall saw dimensions 36 in: 69 1/4" W x 36 1/2" D x 34" H
Saw body footprint: 20" W x 25" D (Cabinet)
Cast iron table: 24" W x 30" D
Cast iron table (w/ extension wings): 44" W x 30" D
Extension wings: 10" W x 30" D each
Extension table 36 in: 24" W x 30" D
Shipping weights - w/ 36 in fence systems: 755 lbs (4 boxes)
Shipping dimensions (saw body only): 40" W x 40" D x 40" H
Shipping weight (approx.): 640 lbs (table saw only)
Assembled weights - w/ 36 in fence systems: 635 lbs. (approx weight, actual weight varies by motor size)
Weights - table saw only: 530 lbs. (approx weight, actual weight varies by motor size)
Blade: 40-tooth Titanium, 5/8" arbor
Blade diameter: 10"
Blade tilt: Left
Blade kerf: 0.118" (3mm)
Blade plate thickness: 0.078" (2mm)
Max. depth of cut, blade at 0º: 3 1/8"
Max. depth of cut, blade at 45º: 2 1/4"
Max. rip, right of blade - 36 in: 36 1/2" (w/ optional 36" rails)
Max. rip, left of blade: 12 1/2"
Dado diameter: 8" (requires dado brake cartridge & insert)
Dado max. width: 29/32"
Arbor diameter at blade: 5/8"
Arbor Runout 0.001" Maximum allowable runout
Main bearing size: 62mm OD x 30mm ID
Second bearing size: 52mm OD x 25mm ID
Table in front of blade (max. elevation): 10 3/4"
Table behind blade (max. elevation): 10"
Arbor Runout: 0.001" Maximum allowable runout
Table flatness measured diagonally: 0.010" Maximum gap
Belts: 2 V-ribbed belts - arbor b. static dissipative
Blade alignment with miter slot: 0.010" Maximum displacement
Deviation of miter gauge indexing stops from actual: ±0.25º
Alignment between splitter and blade: 0.010" Maximum difference
Miter slots T-shaped: 3/4" at top, 1" at bottom, 3/8" deep
Miter slots center: 11 1/8" center-to-center
Miter slots info: 5 1/2" (arbor flange to center of right slot)
Dust collection port diameter: 4"
Dust collection blade guard: Polycarbonate, extends only 1-3/16" to right of blade
Blade guard: (Dust collection) port diameter 1-1/2" Outside, 1-1/4" Inside
Insert: Zero clearance, phenolic core, melamine surfaces
Hand wheels: 8" diameter, cast iron w/ chrome handle
Riving knife / splitter thickness: 0.090" (2.3 mm)
